Ring Type Joint Flanges / RTJ Flanges

We are Manufacturer, Supplier and Exporter of high Quality Ring Type Joint Flanges / RTJ Flanges. Ring joint flange is a special type of flange connection in which a metal ring (resting in a groove in the flange) serves as a pressure seal between the two flanges. This jointing method can be employed on Weld Neck, Slip-on and Blind Flange. Ring Type Joint Flanges / RTJ Flanges are available in following specifications:

Size Range From 1/2" to 84".
Pressure classes range from 150lbs to 2,500lbs.
Standards ANSI, MSS, API, AWWA, DIN, JIS, BS and GB.

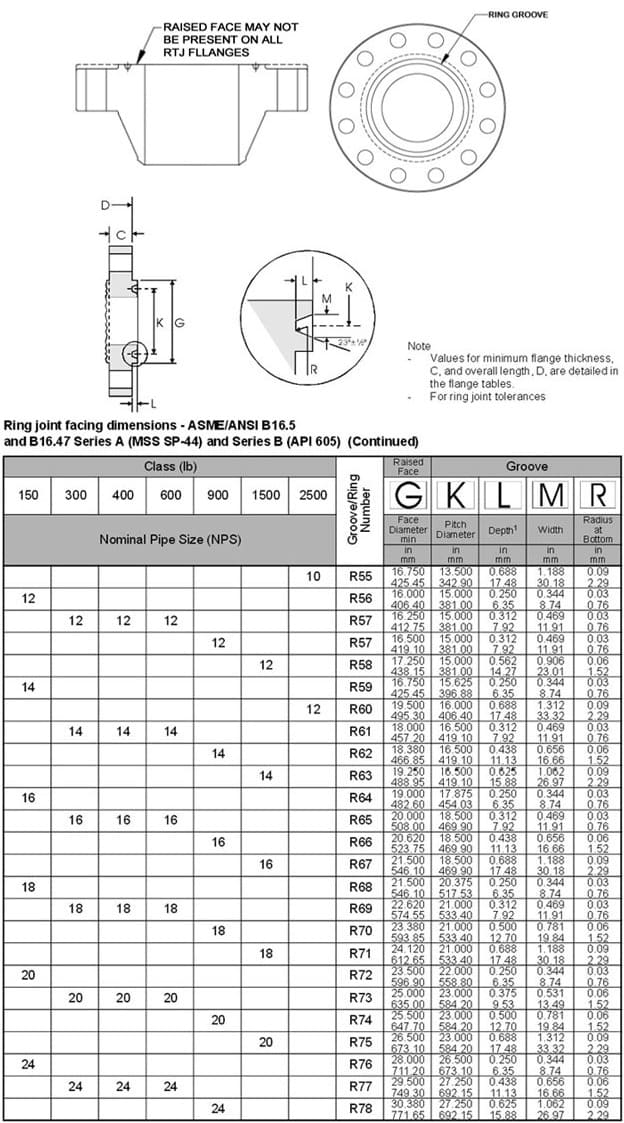

Ring Type Joint Flanges Dimensions
